eucaLimus

Coronary Stent System with Sirolimus Drug Coating

Excellent Deliverability,
Optimal Therapy and Support

G-70-2343 Rev02

Technical Specifications

Stent

Vessel Size Range	Small Vessel (SV)	Medium Vessel (MV)	Large Vessel (LV)
Stent Diameter Range	2.25 – 2.75 mm	3.0 – 4.0 mm	4.5 – 5.0 mm

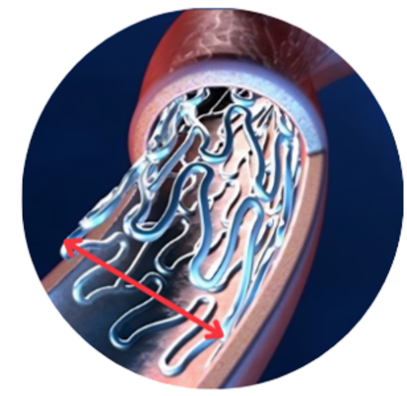

Upper Expansion Limit	3.25 mm	4.5 mm	6.0 mm
Stent Material	Cobalt Chromium L605
Stent Design (cell)	Open cell with 3 mid-to mid interlinks to main strut

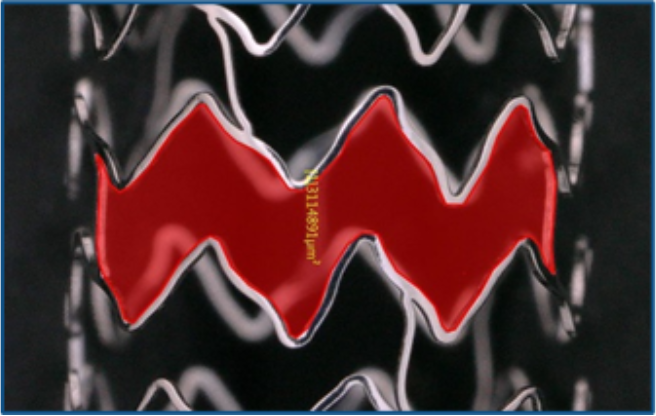

Sidebranch Access	5.3 mm (ø 4.0 mm stent)

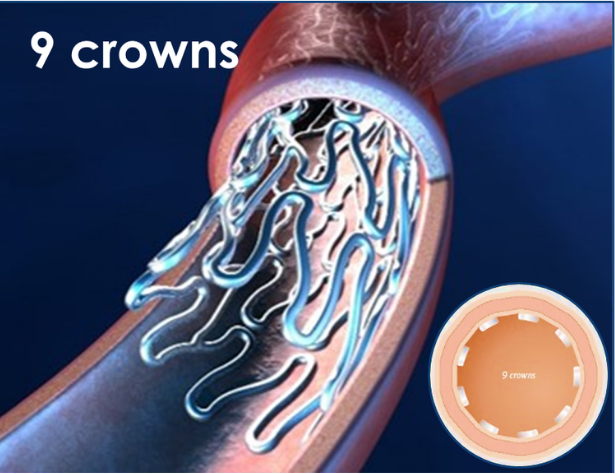

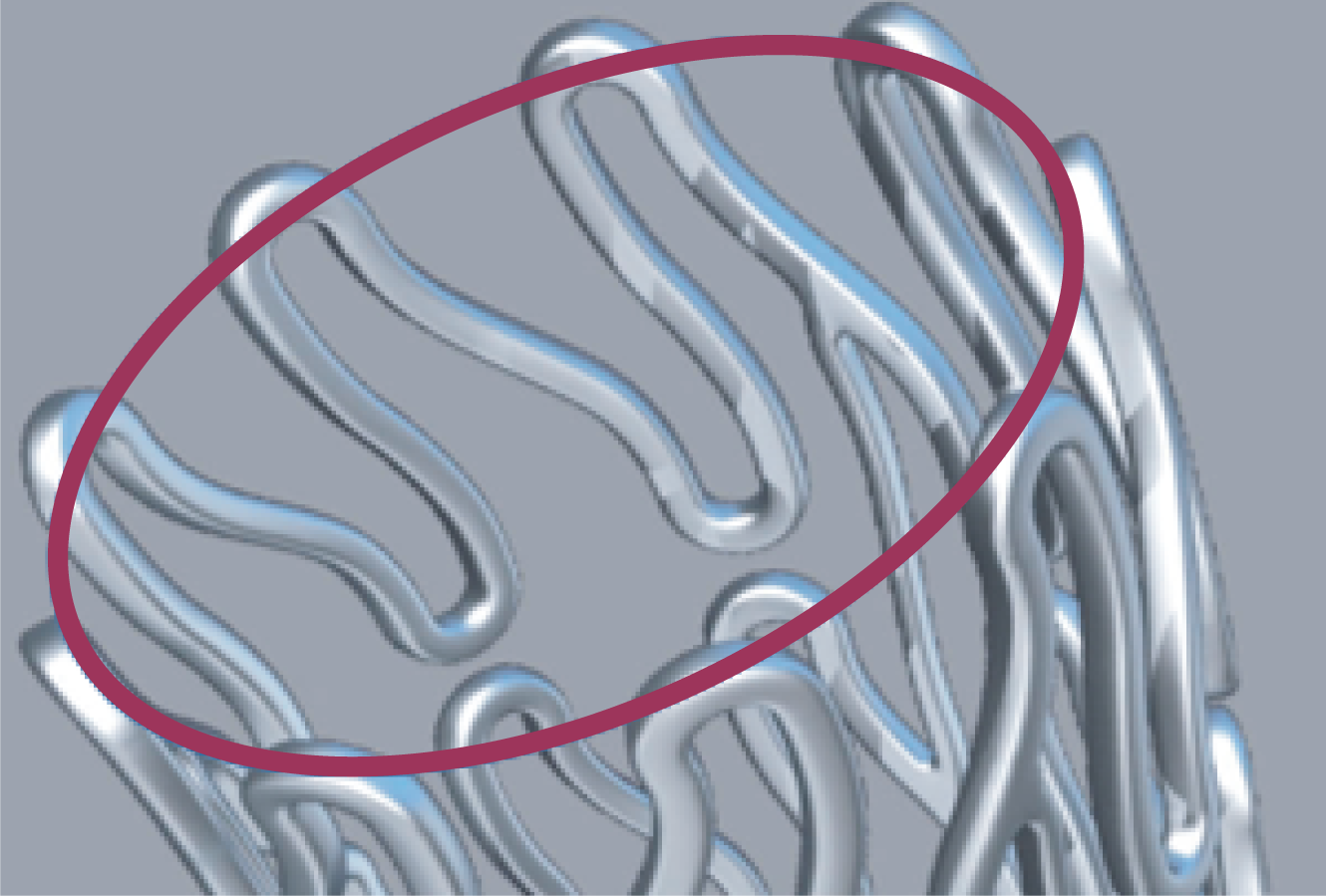

Stent Design (# of crowns)	6	9	9
Strut Thickness	0.0026″ (65 μm)	0.0026″ (65 μm)	0.0042″ (107 μm)
Foreshortening	< 2.5%
Recoil	< 6%
Vessel Wall Coverage	< 13.6%

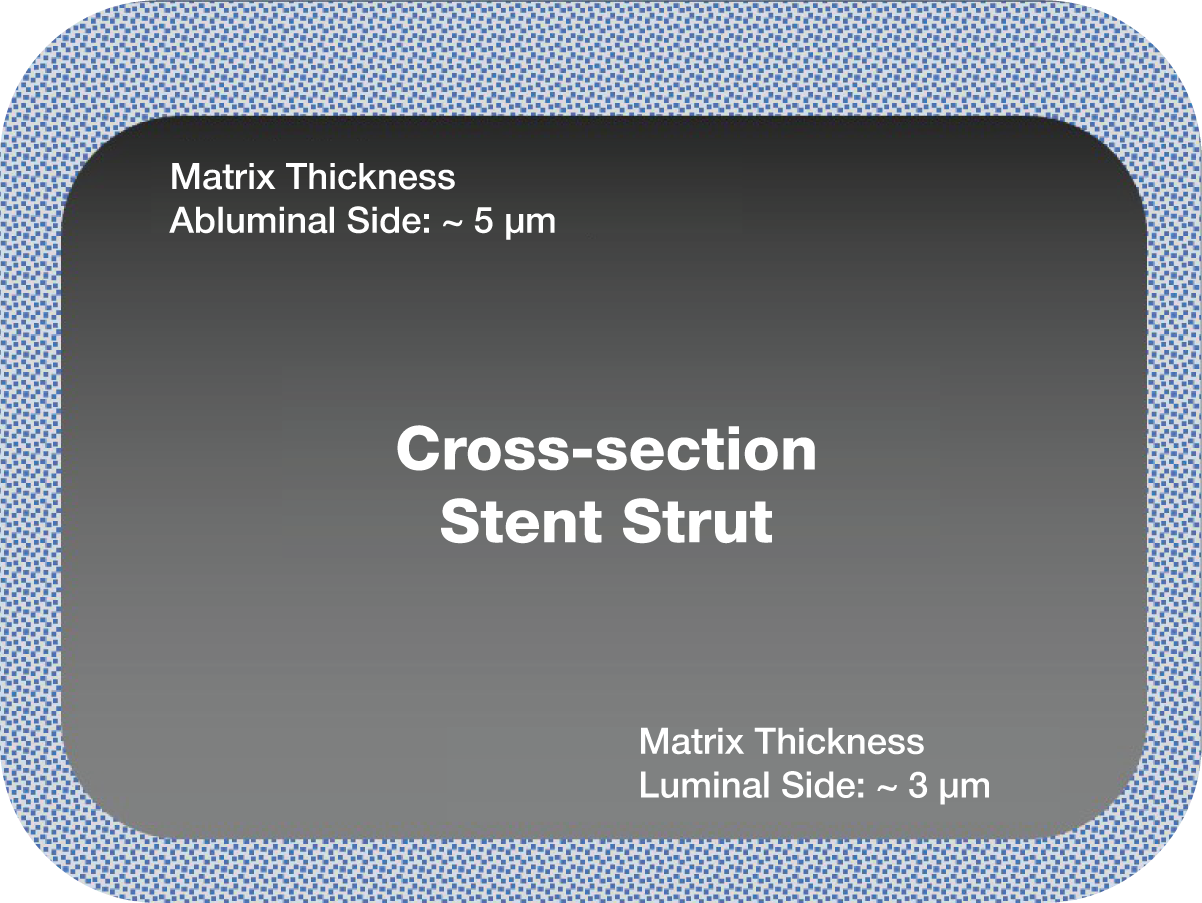

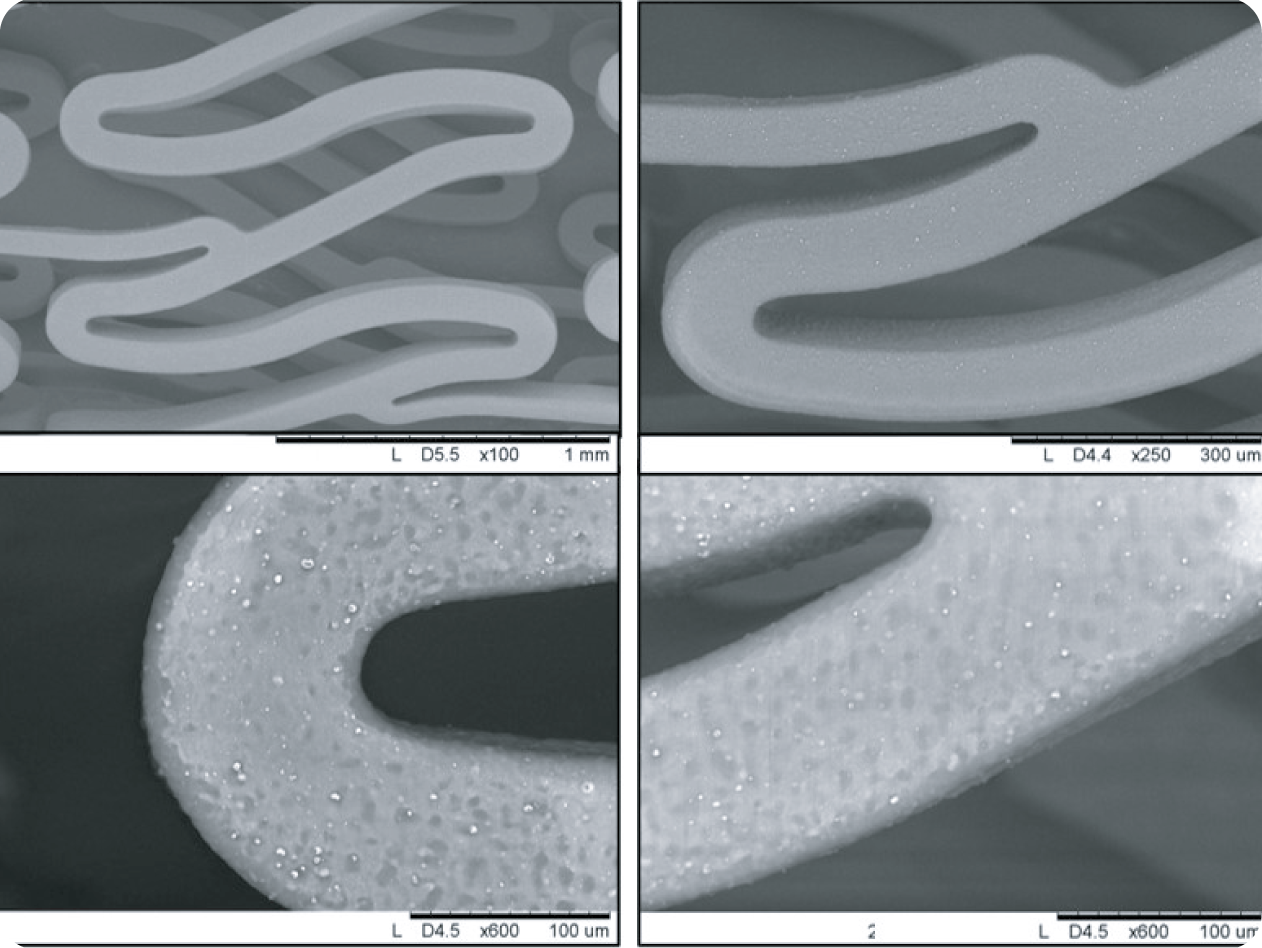

Coating Matrix Thickness	3 – 5 µm
Biodegradable Polymer	PLGA, circumferential

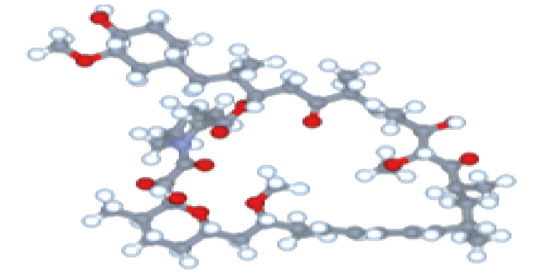

Drug	Sirolimus
Drug Dosage	1.4 µg / mm2

Delivery System

Usable Length	138 cm
Guidewire Lumen Length	27 cm
Guide Catheter Compatibility	5F
Guide Wire Diameter	0.014”
Usable Catheter Length	138 cm
Balloon Material	Proprietary polyamide compound
Balloon Folding	3 (ø 2.25 – 4.0), 5 (ø 4.5 & 5.0)
Coating (distal / proximal shaft)	Hydrophilic (distal), PTFE (proximal)
Marker Bands	2 (platinum/iridium)
Proximal Shaft Profile	1.9 F
Distal Shaft Profile	2.8F (ø 2.25 – 4.0 mm) – 3.0F (ø 4.50 & 5.00 mm)
Nominal Pressure (NP)	8 atm
Rated Burst Pressure (RBP)	19 atm (ø 2.25 mm), 18 atm (ø 2.5 & 2.75 mm), 17 atm (ø 3.0 & 3.25 mm), 16 atm (ø 3.5 & 4.0 mm), 15 atm (ø 4.5 & 5.0 mm)

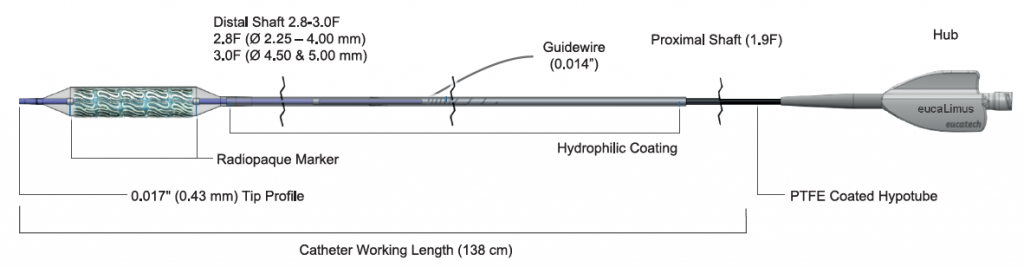

Schematic

Compliance Chart

Pressure (atm)	Stent Diameter (ø mm)
Pressure (atm)	2.25	2.50	2.75	3.00	3.25	3.50	4.00	4.50	5.00
8 (NOM)*	2.25	2.50	2.75	3.00	3.25	3.50	4.00	4.50	5.00
9	2.27	2.53	2.78	3.03	3.28	3.55	4.04	4.56	5.05
10	2.29	2.56	2.81	3.06	3.32	3.59	4.09	4.60	5.09
11	2.32	2.59	2.84	3.09	3.35	3.62	4.12	4.64	5.13
12	2.34	2.62	2.86	3.12	3.38	3.65	4.15	4.68	5.16
13	2.36	2.65	2.89	3.14	3.41	3.69	4.19	4.72	5.20
14	2.38	2.68	2.91	3.17	3.44	3.72	4.23	4.76	5.23
15 (RBP)**	2.40	2.71	2.94	3.20	3.47	3.76	4.27	4.81	5.27
16 (RBP)**	2.42	2.74	2.97	3.22	3.50	3.80	4.31	–	–
17 (RBP)**	2.45	2.78	3.00	3.25	3.53	–	–	–	–
18 (RBP)**	2.47	2.82	3.03	–	–	–	–	–	–
19 (RBP)**	2.49	–	–	–	–	–	–	–	–

* Nominal Pressure. The nominal in vitro device specifications do not take into account any lesion resistance.
** Related Burst Pressure. Do not exceed RBP.

Available Configurations

Stent Length (mm)
Stent Diameter (ø mm)	8	10	13	16	18	23	28	33	38	43	48
2.25	●	●	●	●	●	●	●	●	●	●	●
2.50	●	●	●	●	●	●	●	●	●	●	●
2.75	●	●	●	●	●	●	●	●	●	●	●
3.00	●	●	●	●	●	●	●	●	●	●	●
3.25	●	●	●	●	●	●	●	●	●	●	●
3.50	●	●	●	●	●	●	●	●	●	●	●
4.00	●	●	●	●	●	●	●	●	●	●	●
4.50			●	●	●	●	●	●	●
5.00			●	●	●	●	●	●	●

eucaLimus Brochure

G-70-2387 Rev02
