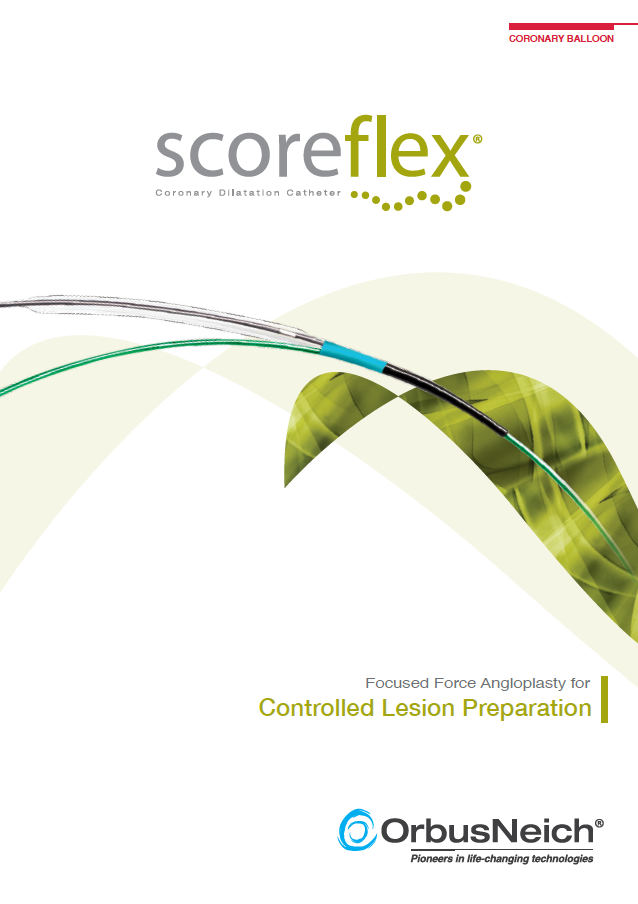

Coronary Dilatation Catheter

Focused Force Angioplasty for
Controlled Lesion Preparation

Focused Force Angioplasty for Safe and Controlled Dilatation

Scoreflex is a focused force dilatation balloon with a dual-wire system which creates a focal stress pattern to facilitate safe and controlled plaque modification at lower resolution pressure.

Advance a standard guidewire across the target lesion.

Advance Scoreflex over the guidewire and cross the target lesion.

Inflate the Scoreflex balloon in a stepwise fashion.

Withdraw the deflated Scoreflex once the desired result is achieved.

Source: Kawase et. al, Cardiovasc Interv and Ther, DOI 10.1007/s12928-013-0232-6
For illustration . Please refer to the Scoreflex IFU for detailed instruction for use

G-70-0650 Rev02

Scoreflex Construction


A short rapid exchange tip with the guidewire exit port proximal to the tip


A nitinol integral wire, welded from tip to hypotube, serving as one of the scoring elements


Two radiopaque markers on the integral wire aligned to the balloon shoulders

The (conventional) guidewire exits proximal to the tip and acts as the second scoring element

Catheter for excellent deliverability

Continuous hub-to-tip metallic construction for enhanced pushability, with a
combination of hydrophilic and hydrophobic coatings to minimize friction

Hydro-X hydrophilic coating is a water-absorbing, very slippery coating that reduces friction during lesion crossing


Invio hydrophobic coating is a water-repelling, slippery coating that reduces guidewire friction


Crossing profile

Source: Data on file

Low Dilatation Pressure, Big Dilatation Effect

Scoreflex is a focused force dilatation balloon that comes with a dual wire system which enables effective dilatation under lower inflation pressure. For optimal results, a gradual step-up inflation protocol should be adopted


  • Lesion preparation for stents, scaffolds, drug-coated balloons
  • Calcified and fibrotic lesions
  • Ostial lesions
  • Bifurcation lesions
  • Long diffused lesions
  • Small lesions without need of stenting
  • In-stent restenosis

G-70-0685 Rev 04
