JADE PLUS - OrbusNeich

Technical Specifications

	014	018	035
Catheter Type	Over the wire	Over the wire	Over the wire
Minimum Sheath Size (Ø in mm)	4 F (Ø 1.5 – 3.5); 5 F (Ø 4.0 – 5.0); 6 F (Ø 5.5 – 6.0)	4 F (Ø 1.5 – 3.0); 5 F (Ø 3.5 – 5.0); 6 F (Ø 5.5 – 7.0)	5 F (Ø 3.0 – 4.0); 6 F (Ø 5.0 – 9.0); 7F (Ø 10.0); 8F (Ø 12.0)
Guidewire Compatibility	0.014″	0.018″	0.035″
Catheter Working Length (cm)	90, 150, 200	90, 150, 200	75, 135, 200
Balloon Material (Ø in mm)	Nylon (Ø 1.5 – 3.5); Nylon/Pebax (Ø 4.0 – 6.0)	Nylon (Ø 1.5 – 3.5); Nylon/Pebax (Ø 4.0 – 7.0)	Nylon (Ø 1.5 – 3.5); Nylon/Pebax (Ø 4.0 – 12.0)
Balloon Compliance	Non-Compliant	Non-Compliant	Non-Compliant
Marker Bands	2 (20 – 150 mm); 4 (180 – 300 mm)	2 (20 – 150 mm); 4 (180 – 300 mm)	2 (20 – 150 mm); 4 (180 – 300mm)
Coating	Hydrophilic (tip & distal shaft); Hydrophobic (guidewire lumen)
Nominal Pressure (Ø in mm)	12 atm (Ø 1.5 – 6.0)	12 atm (Ø 1.5 – 6.0); 10 atm (Ø 7.0)	12 atm (Ø 3.0 – 6.0); 10 atm (Ø 7.0 – 12.0)
Rated Burst Pressure (Ø in mm)	22 atm (Ø 1.5 – 4.0); 20 atm (Ø 4.5 – 5.0); 18 atm (Ø 5.5 – 6.0)	22 atm (Ø 1.5 – 4.0); 20 atm (Ø 4.5 – 5.0); 18 atm (Ø 5.5 – 6.0); 16 atm (Ø 7.0)	22 atm (Ø 3.0 – 4.0); 20 atm (Ø 4.5 – 5.0); 18 atm (Ø 5.5 – 6.0); 16 atm (Ø 7.0 – 8.0); 14 atm (Ø 9.0 – 12.0)

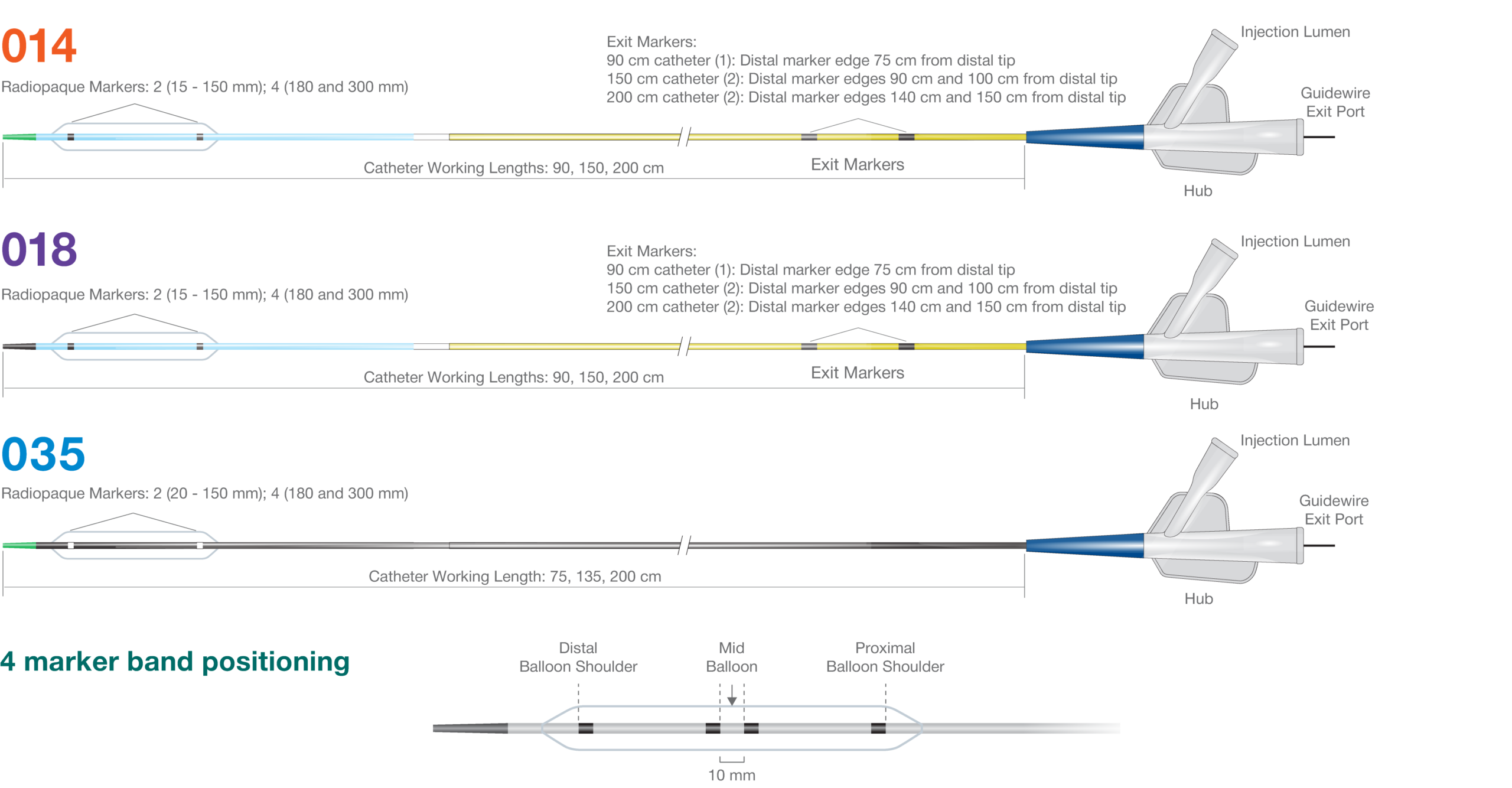

Schematic

Compliance chart

Pressure (atm)	Balloon Diameter (Ø mm)
	1.5¹	2.0¹	2.5¹	3.0	3.5¹	4.0	4.5¹	5.0	5.5¹	6.0	7.0²	8.0³	9.0³	10.0³	12.0³
2	1.42	1.90	2.37	2.83	3.27	3.77	4.24	4.65	5.10	5.63	6.57	7.51	8.24	9.16	10.91
4	1.44	1.92	2.39	2.86	3.32	3.82	4.29	4.72	5.19	5.70	6.68	7.63	8.43	9.37	11.18
6	1.45	1.94	2.42	2.90	3.36	3.86	4.34	4.79	5.27	5.78	6.78	7.76	8.62	9.58	11.45
8	1.47	1.96	2.45	2.93	3.41	3.91	4.39	4.86	5.35	5.85	6.89	7.88	8.81	9.79	11.73
10 NOM*	1.48	1.98	2.47	2.97	3.45	3.95	4.45	4.93	5.42	5.93	7.00	8.00	9.00	10.00	12.00
12 NOM*	1.50	2.00	2.50	3.00	2.50	4.00	4.50	5.00	5.50	6.00	7.11	8.12	9.19	10.21	12.27
14 RBP**	1.52	2.02	2.53	3.03	3.55	4.05	4.55	5.07	5.58	6.07	7.22	8.24	9.38	10.42	12.55
16 RBP**	1.53	2.04	2.55	3.07	3.59	4.09	4.61	5.14	5.65	6.15	7.32	8.37	9.57	10.63	12.82
18 RBP**	1.55	2.06	2.58	3.10	3.64	4.14	4.66	5.21	5.73	6.22	7.43	8.49	–	–	–
20 RBP**	1.56	2.08	2.61	3.14	3.68	4.18	4.71	5.28	5.81	6.30	7.54	8.61	–	–	–
22 RBP**	1.58	2.10	2.63	3.17	3.73	4.23	4.76	5.35	5.89	6.37	–	–	–	–	–
24	1.59	2.12	2.66	3.21	3.77	4.27	4.82	5.42	–	–	–	–	–	–	–
26	1.61	2.14	2.69	3.24	3.82	4.32	–	–	–	–	–	–	–	–	–

¹ 1.5, 2.0, 2.5, 3.5, 4.5 and 5.5 mm configurations are available only for 014 and 018 platforms.
² 7.0mm configurations are available only for 018 and 035 platforms.
³ 8.0 – 12.0 mm configurations are available only for 035 platforms.
*Nominal Pressure. The nominal in-vitro device specifications do not take into account any lesion resistance.
**Rated Burst Pressure. Do not exceed RBP.

G-70-3000 Rev01

● Make-to-order (MTO)
✕ Make-to-stock (MTS)

Available Configurations for the 014 System

90 cm catheter length

Balloon Diameter (Ø mm)	Balloon Length (mm)
Balloon Diameter (Ø mm)	15	20	40	60	80	100	120	150	180	240	300	Sheath
1.5	●	●	✕	●	●	●	●	●	●	●	●	4F
2.0	●	●	✕	✕	✕	✕	✕	●	✕	●	●
2.5	●	●	✕	●	✕	●	✕	●	✕	✕	✕
3.0	●	●	✕	●	●	✕	✕	●	✕	✕	✕
3.5	●	●	✕	✕	●	●	●	●	●	●	●
4.0	●	●	●	✕	●	✕	●	●	●	●	●	5F
4.5	●	●	●	●	●	●	●	●	●	●	●
5.0	●	●	●	●	●	●	●	●	●	●	●
5.5	●	●	●	●	●	●	●	●	●	●	●	6F
6.0	●	●	●	●	●	●	●	●	●	●	●	6F

150 cm catheter length

Balloon Diameter (Ø mm)	Balloon Length (mm)
Balloon Diameter (Ø mm)	15	20	40	60	80	100	120	150	180	240	300	Sheath
1.5	●	✕	✕	●	✕	●	✕	●	●	✕	●	4F
2.0	●	✕	✕	✕	✕	✕	✕	✕	✕	✕	✕
2.5	●	✕	✕	✕	✕	✕	✕	✕	✕	✕	✕
3.0	●	✕	✕	✕	✕	✕	✕	✕	✕	✕	✕
3.5	●	✕	✕	✕	✕	✕	✕	✕	✕	✕	✕
4.0	●	●	✕	✕	✕	✕	✕	✕	✕	✕	✕	5F
4.5	●	●	●	●	●	●	●	●	●	●	●
5.0	●	✕	✕	✕	✕	✕	✕	✕	✕	✕	✕
5.5	●	●	●	●	●	●	●	●	●	●	●	6F
6.0	●	●	✕	✕	✕	✕	●	✕	●	✕	✕	6F

200 cm catheter length

Balloon Diameter (Ø mm)	Balloon Length (mm)
Balloon Diameter (Ø mm)	15	20	40	60	80	100	120	150	180	240	300	Sheath
1.5	●	●	●	●	●	●	●	●	●	●	●	4F
2.0	●	●	●	●	●	●	●	●	●	✕	✕
2.5	●	●	●	●	●	●	●	✕	●	✕	✕
3.0	●	●	●	✕	●	✕	●	✕	●	✕	✕
3.5	●	●	●	●	●	●	●	●	●	●	●
4.0	●	●	●	●	●	●	●	●	●	●	●	5F
4.5	●	●	●	●	●	●	●	●	●	●	●
5.0	●	●	●	●	●	●	●	●	●	●	●
5.5	●	●	●	●	●	●	●	●	●	●	●	6F
6.0	●	●	●	●	●	●	●	●	●	●	●	6F

Available Configurations for the 018 System

90 cm catheter length

Balloon Diameter (Ø mm)	Balloon Length (mm)
Balloon Diameter (Ø mm)	15	20	40	60	80	100	120	150	180	240	300	Sheath
1.5	●	●	✕	●	●	●	●	●	●	●	●	4F
2.0	●	●	✕	✕	✕	✕	✕	●	✕	●	●
2.5	●	●	✕	●	✕	●	✕	●	✕	✕	✕
3.0	●	●	✕	●	●	✕	✕	●	✕	✕	✕
3.5	●	●	✕	✕	●	●	●	●	●	●	●
4.0	●	●	●	✕	●	✕	●	●	●	●	●	5F
4.5	●	●	●	●	●	●	●	●	●	●	●
5.0	●	●	●	●	●	●	●	●	●	●	●
5.5	●	●	●	●	●	●	●	●	●	●	●	6F
6.0	●	●	●	●	●	●	●	●	●	●	●
7.0	●	●	●	●	●	●	–	●	–	–	–

150 cm catheter length

Balloon Diameter (Ø mm)	Balloon Length (mm)
Balloon Diameter (Ø mm)	15	20	40	60	80	100	120	150	180	240	300	Sheath
1.5	●	✕	✕	●	✕	●	✕	●	●	✕	●	4F
2.0	●	✕	✕	✕	✕	✕	✕	✕	✕	✕	✕
2.5	●	✕	✕	✕	✕	✕	✕	✕	✕	✕	✕
3.0	●	✕	✕	✕	✕	✕	✕	✕	✕	✕	✕
3.5	●	✕	✕	✕	✕	✕	✕	✕	✕	✕	✕
4.0	●	●	✕	✕	✕	✕	✕	✕	✕	✕	✕	5F
4.5	●	●	●	●	●	●	●	●	●	●	●
5.0	●	✕	✕	✕	✕	✕	✕	✕	✕	✕	✕
5.5	●	●	●	●	●	●	●	●	●	●	●	6F
6.0	●	●	✕	✕	✕	✕	●	✕	●	✕	✕
7.0	●	●	●	●	●	●	–	●	–	–	–

200 cm catheter length

Balloon Diameter (Ø mm)	Balloon Length (mm)
Balloon Diameter (Ø mm)	15	20	40	60	80	100	120	150	180	240	300	Sheath
1.5	●	●	●	●	●	●	●	●	●	●	●	4F
2.0	●	●	●	●	●	●	●	●	●	✕	✕
2.5	●	●	●	●	●	●	●	✕	●	✕	✕
3.0	●	●	●	✕	●	✕	●	✕	●	✕	✕
3.5	●	●	●	●	●	●	●	●	●	●	●
4.0	●	●	●	●	●	●	●	●	●	●	●	5F
4.5	●	●	●	●	●	●	●	●	●	●	●
5.0	●	●	●	●	●	●	●	●	●	●	●
5.5	●	●	●	●	●	●	●	●	●	●	●	6F
6.0	●	●	●	●	●	●	●	●	●	●	●
7.0	●	●	●	●	●	●	–	●	–	–	–

Available Configurations for the 035 System

75 cm catheter length

Balloon Diameter (Ø mm)	Balloon Length (mm)
Balloon Diameter (Ø mm)	20	40	60	80	100	150	180	240	300	Sheath
5.0	●	✕	✕	✕	✕	●	●	✕	●	6F
6.0	●	✕	✕	✕	✕	●	✕	✕	●
7.0	●	✕	✕	✕	✕	✕	✕	–	–
8.0	●	✕	✕	✕	✕	✕	–	–	–
9.0	●	✕	✕	✕	–	–	–	–	–
10.0	●	✕	✕	✕	–	–	–	–	–	7F
12.0	●	●	●	●	–	–	–	–	–	8F

135 cm catheter length

Balloon Diameter (Ø mm)	Balloon Length (mm)
Balloon Diameter (Ø mm)	20*	40	60	80	100	150	180*	240	300	Sheath
3.0	●	●	●	●	●	●	●	●	●	5F
4.0	●	✕	✕	✕	✕	✕	✕	●	●	5F
5.0	●	✕	✕	✕	✕	●	✕	✕	●	6F
6.0	●	✕	✕	✕	✕	✕	✕	✕	✕
7.0	●	✕	✕	✕	✕	✕	✕	–	–
8.0	●	✕	✕	✕	✕	✕	–	–	–
9.0	●	●	●	●	–	–	–	–	–
10.0	●	●	●	●	–	–	–	–	–	7F
12.0	●	●	●	●	–	–	–	–	–	8F

200 cm catheter length*

Balloon Diameter (Ø mm)	Balloon Length (mm)
Balloon Diameter (Ø mm)	20	40	60	80	100	150	180	240	300	Sheath
3.0	●	●	●	●	●	●	●	●	●	5F
4.0	●	●	●	●	●	●	●	●	●	5F
5.0	●	●	●	●	●	●	●	●	●	6F
6.0	●	●	●	●	●	●	●	●	●
7.0	●	●	●	●	●	●	●	–	–
8.0	●	●	●	●	●	●	–	–	–

120 mm length is not manufactured for the 035 system.

G-70-3001 Rev01

G-70-2464 Rev06 JADE Plus CE Approved Brochure (SZ Manufacturing)

G-70-3002 Rev01

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

JADE® PLUS

Strength and non-compliant precision without compromising deliverability

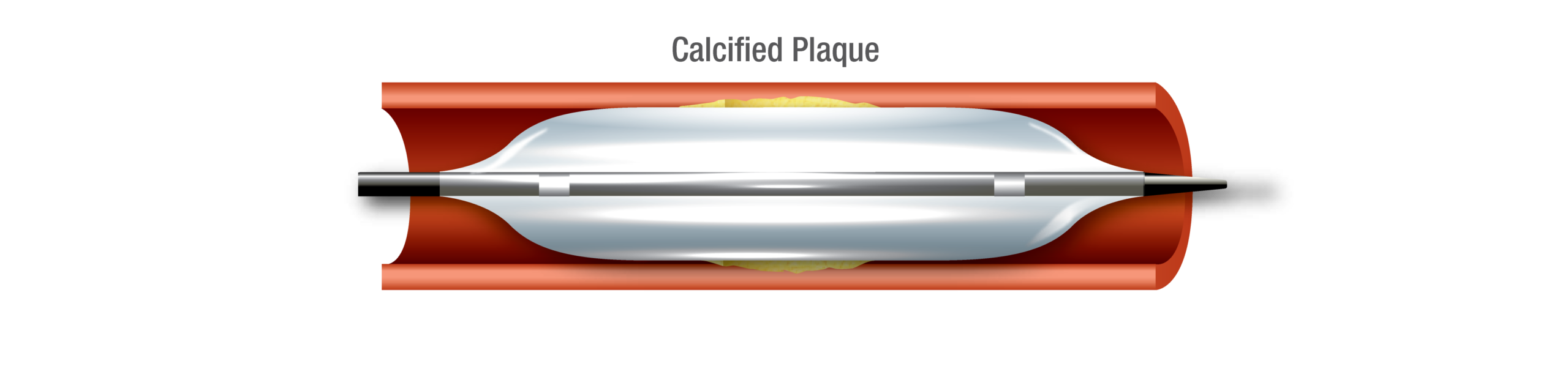

Non-Compliant Balloon

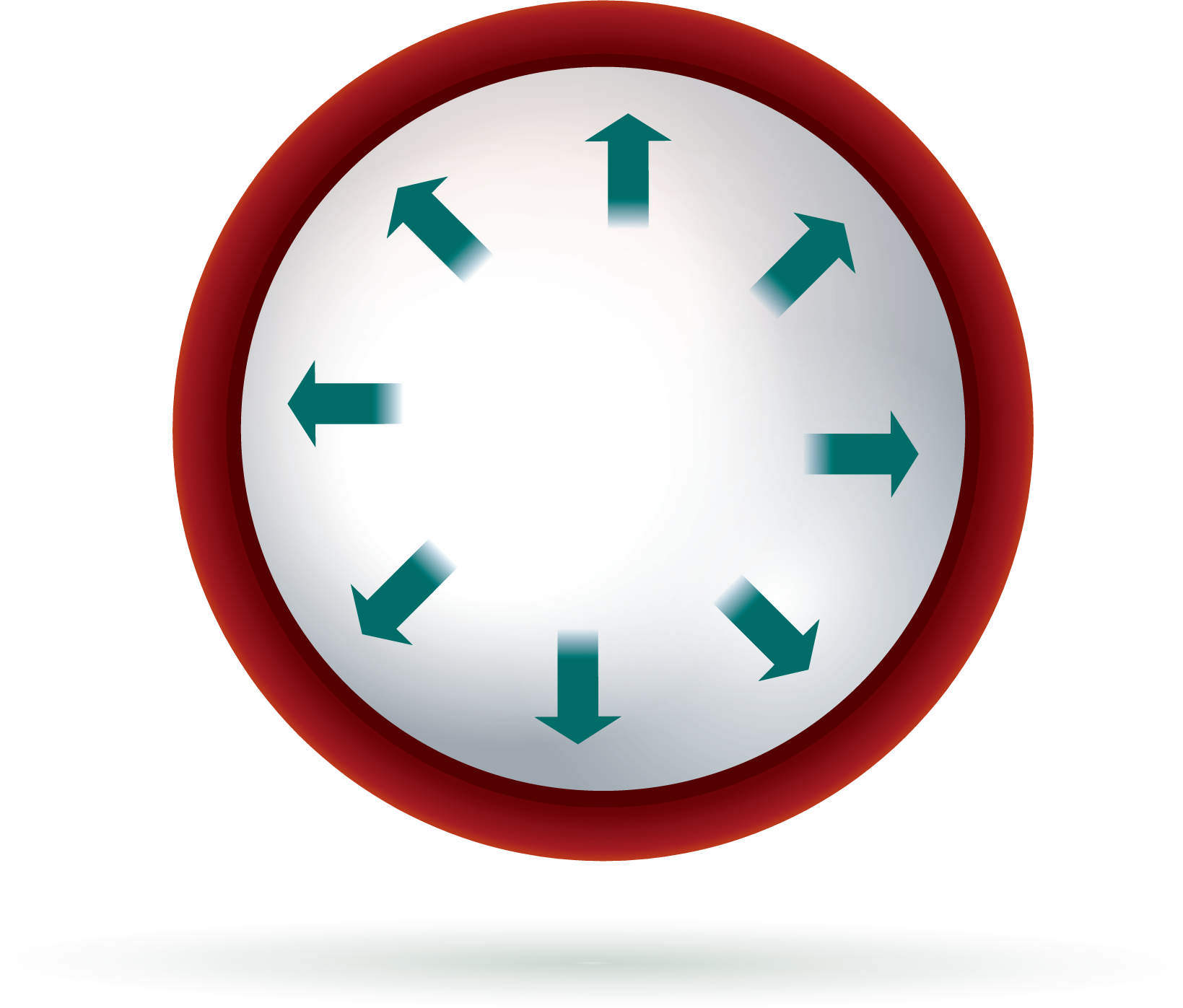

Safety & Accuracy

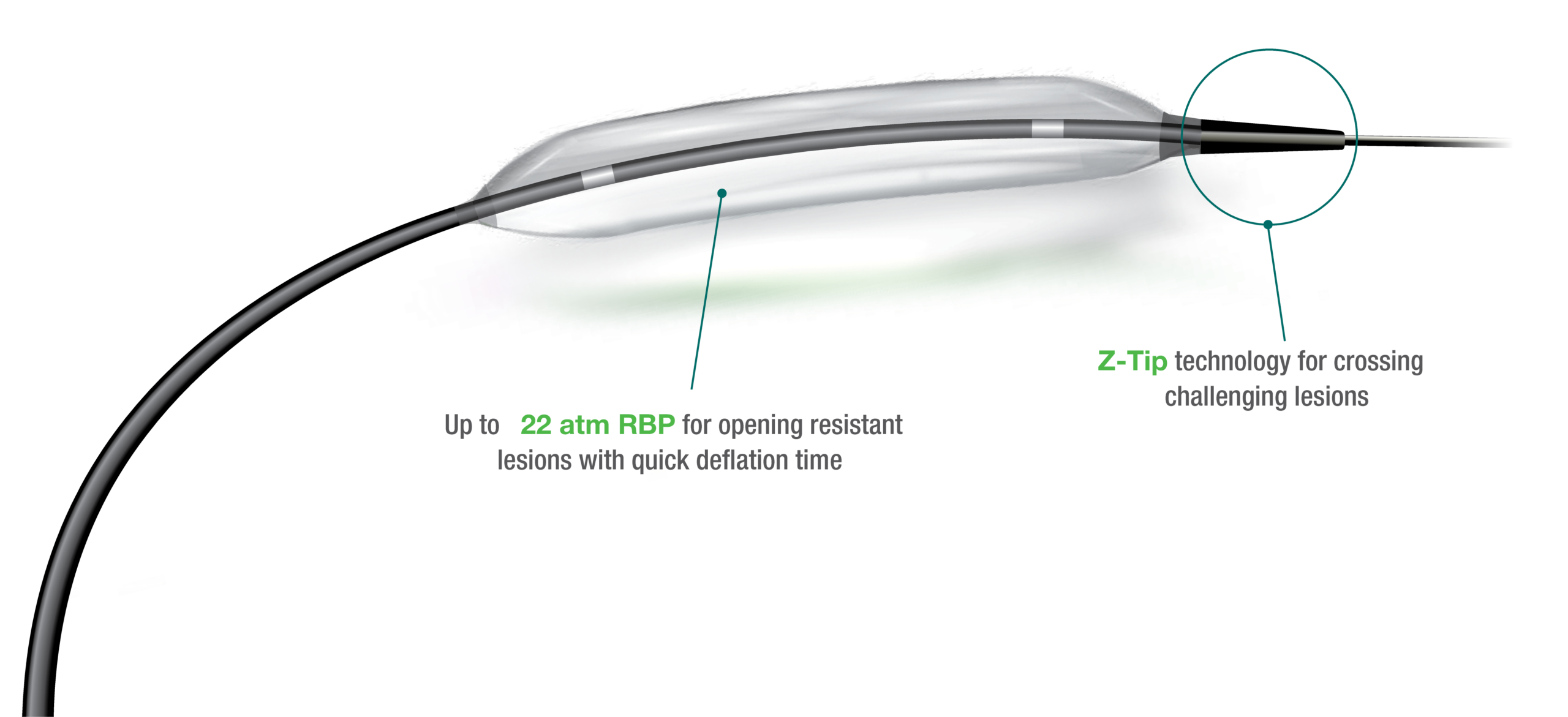

RBP up to 22 atm

Length up to 300 mm

12.7% Slimmer Crossing Profile

Extended Sizes up to Ø12 mm

Re-wrap Optimization
